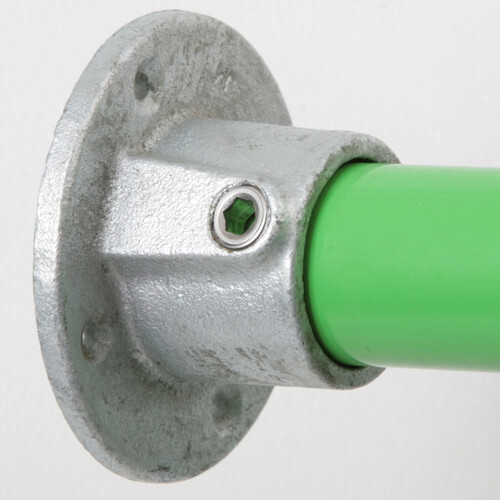

Wall Flange 131D (48.3mm)
In Stock
Code: 131D
Please add your desired product(s) to the quote.
Once you have submitted your quote request, you will receive a quote within 48 hours (Monday – Friday).
Are you looking to purchase from the UK? Why not check out our dedicated UK based scaffolding and construction website
Scaffolding Direct.
With four countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This fitting may be used on
structures where it is only required as a positional fixing.
Complies with B.S. EN1461.
Intended for: Alloy tube and Steel tube, also known as a Key Clamp or Pipe Clamp
Can be used for Handrails, Walkways, Edge Protection, Racking, Guardrails, Balustrades.
Material - Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Equivalent Product to:
| Interclamp | 131 |
| Keeklamp | 61 |
| Fastclamp | C11 |
| Alvin | A10 |
We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg
also known as a Key Clamp or Pipe Clamp
