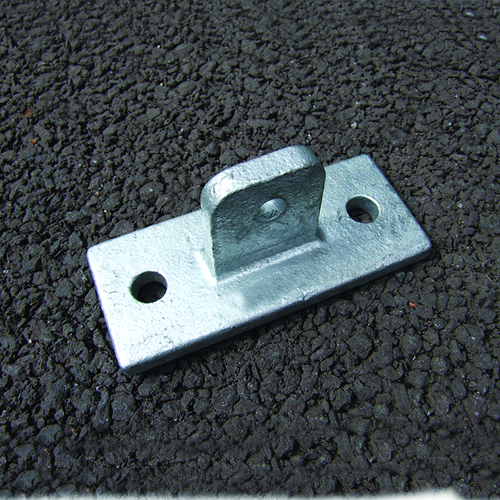

Male Swivel Locating Flange 169M (48.3mm)
In Stock
Code: 169M
Please add your desired product(s) to the quote.
Once you have submitted your quote request, you will receive a quote within 48 hours (Monday – Friday).
Are you looking to purchase from the UK? Why not check out our dedicated UK based scaffolding and construction website
Scaffolding Direct.
This male swivel locating flange is a malleable iron casting that complies with B.S. EN1461. These tubeclamps are also know by the term key clamps.
| Info | Detail |
| Manufacturing Standard | B.S. EN1461. |
| Material | Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size | 3/8 |
| Weight | 1kg |
A male swivel locating flange is used as a spare/replacement for the swivel base, or can be used in manufacturing.
| Equivalent product | |
| Interclamp | 104 |
| Keeklamp | 25 |
| Fast Clamp | C04 |
| Alvin | A5 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg
