4 Way Cross 158C (42.4mm)
In Stock
Code: 158C
Please add your desired product(s) to the quote.
Once you have submitted your quote request, you will receive a quote within 48 hours (Monday – Friday).
Are you looking to purchase from the UK? Why not check out our dedicated UK based scaffolding and construction website
Scaffolding Direct.

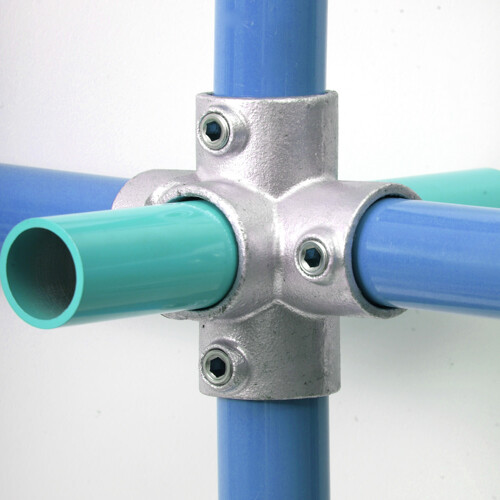

A 4 way cross that enables the vertical to pass through the centre of the fitting with the four horizontal tubes joining at 90° to each other.
Ideal for structures with multiple verticals. The vertical must remain either continuous with the cross rails being cut.
Complies with B.S. EN1461. Intended for: Alloy tube and Steel tube.
Can be used for Handrails, Walkways, Edge Protection, Racking, Guardrails, Balustrades.
Material - Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Equivalent Product to:
| Interclamp | 158 |
| Keeklamp | 40 |
| Fastclamp | C24 |
| Alvin | A26 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg
Also available in 33.7mm pipe clamp and 48.3mm tube clamp
