Single Swivel Combination 173-C (42.4mm)
In Stock
Code: 173C
Please add your desired product(s) to the quote.
Once you have submitted your quote request, you will receive a quote within 48 hours (Monday – Friday).
Are you looking to purchase from the UK? Why not check out our dedicated UK based scaffolding and construction website
Scaffolding Direct.

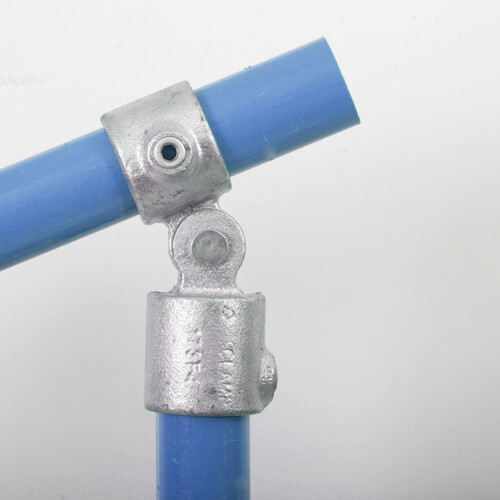

Complete single swivel. The swivel has a travel of approximately 85° from the horizontal in both vertical directions.
Complies with B.S. EN1461. Intended for: Alloy tube and Steel tube.
Can be used for Handrails, Walkways, Edge Protection, Racking, Guardrails, Balustrades.
Material - Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Equivalent Product to:
| Interclamp | 170 |
| Keeklamp | 81 |
| Fastclamp | C66 |
| Alvin | A70 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg
AN ENTIRE STRUCTURE SHOULD NOT BE CONSTRUCTED FROM SWIVEL FITTINGS
ALONE, AS THESE WOULD NOT PROVIDE SUFFICIENT STABILITY OR RIGIDITY
IN THE STRUCTURE DUE TO THE FREE ROTATION OF THE FITTING.
Also available in 33.77 mm pipe clamp and 48.3mm key clamp
