Wall Plate 131-B (33.7mm)
Wall Plate 131-B (33.7mm)

Wall Plate 131-B (33.7mm)

£ 3.35 (£ 4.02 Inc. 20% VAT)
Below is a list of our bulk discount prices;
No of Products 1 - 24 25 - 49 50 +
Unit Price (£) £3.35 £3.20 £2.90
In Stock
Code: 131B

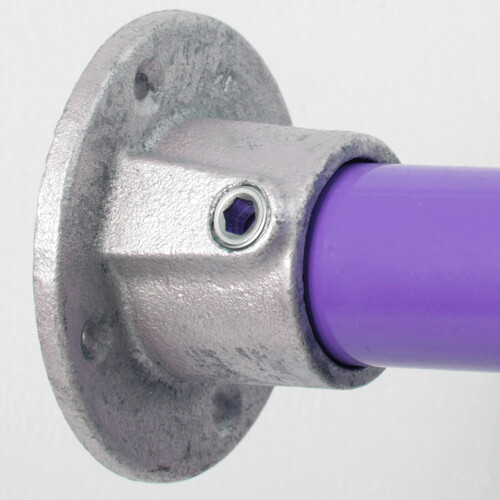

With four countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This fitting may be used on
structures where it is only required as a positional fixing.
Use our 8mm x 60mm Nylon frame fixings to secure this fitting
Also available in 42.44mm Key Clamp and 48.3mm sizes Pipe Clamp
Complies with B.S. EN1461.
Intended for: Alloy tube and Steel tube.

Can be used for Handrails, Walkways, Edge Protection, Racking, Guardrails, Balustrades.
Material - Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Equivalent Product to:
Interclamp 131
Keeklamp 61
Fastclamp C11
Alvin A10

We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg


Also available in 42.44mm Key Clamp and 48.3mm sizes Pipe Clamp
