Square 3 Way Elbow 128-D (40mm)
In Stock
Code: SQ128D
Please add your desired product(s) to the quote.
Once you have submitted your quote request, you will receive a quote within 48 hours (Monday – Friday).
Are you looking to purchase from the UK? Why not check out our dedicated UK based scaffolding and construction website
Scaffolding Direct.

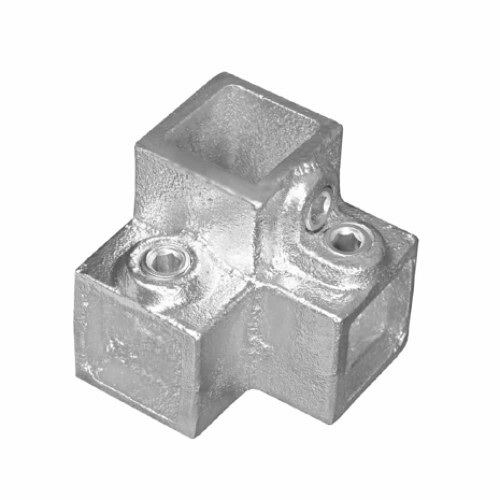

Square 3 Way Elbow 128-D (40mm)
Tube Clamp or Pipe Clamps for 40x40mm box section. Complies with B.S. EN1461. And are also known by the term key clamps.
A 3 way enclosed 90° corner joint. Typical use is on straight and level guardrail at a 90 corner where an upright is in position. This fitting can also be used to create enclosed corner joints.
Our tube clamps can be used to produce a wide range of handrails, furniture pieces, shop fittings, displays etc... By using square tube clamps you can beneift from a more unique design, which is much faster to assemble.
This clamp is suitable for our 40x40 box section available in galvanised steel finish or aluminium.
| Info | Detail |
| Manufacturing Standard | B.S. EN1461. |
| Material | Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size | 3/8 |
| Weight | 1.12kg |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
